Game UI Nine-Slice and Scalable Panels: Figma / PSD Marks and Engine Sliced QA

When a panel is stretched wider, blurry corners, repeating center texture, or oval corners usually mean nine-slice (9-slice / cap insets) was not specified at handoff, or the engine uses Simple scale on the whole sprite. Tuning Image Type and borders in the Unity Editor can save one screen, but the next design drop overwrites it—if borders do not match export scale, rework loops.

Examples below focus on Unity UGUI Image (Sliced / Tiled). Godot StyleBoxTexture and Cocos sprite nine-slice map to the same ideas, including content padding. Anchors and Safe Area: engine + MCP checklist item 6. Stretch-region padding with locales: locale overflow design check 7.

Design handoff checklist item 6 requires clear nine-slice / stretch regions. This post covers when to slice, Figma/PSD marks, three-engine acceptance, and full-screen canvas path, plus a fix table.

Fail criteria (any one = not passed): corner art deforms when stretched; unintended repeat or seams in the stretch region; corner radius changes with panel size; scalable background scaled together with fixed icons/avatars; export scale does not match engine border pixels (1px gaps or soft edges).

When nine-slice is required vs hard stretch forbidden

Asset type	Do	Do not
Dialog / settings panel bg	Nine-slice + content padding	Single Simple sprite full bleed
Input / bar containers	Nine-slice or L/R cap + center repeat	Squash height without art rules
Primary buttons (fixed size)	Fixed sprite or nine-slice + min width	Infinite wide rounded button as one stretch
Icons, avatars, skill frames	Fixed size, no nine-slice	Merge with panel bg into one stretch image
Full-screen bg (no framed box)	Full image or tile strategy in spec	Reuse panel borders on full bleed

Rule: If width or height changes with resolution, copy, or list content and corners must keep shape → nine-slice or engine equivalent. Fixed-size controls → fixed sprite + layout constraints.

---

Figma / PSD handoff marks (tick list)

#	Check	Pass standard
1	Stretch layer separate from decor / icons / text	Panel bg reskin + slice; icons not scaled with bg

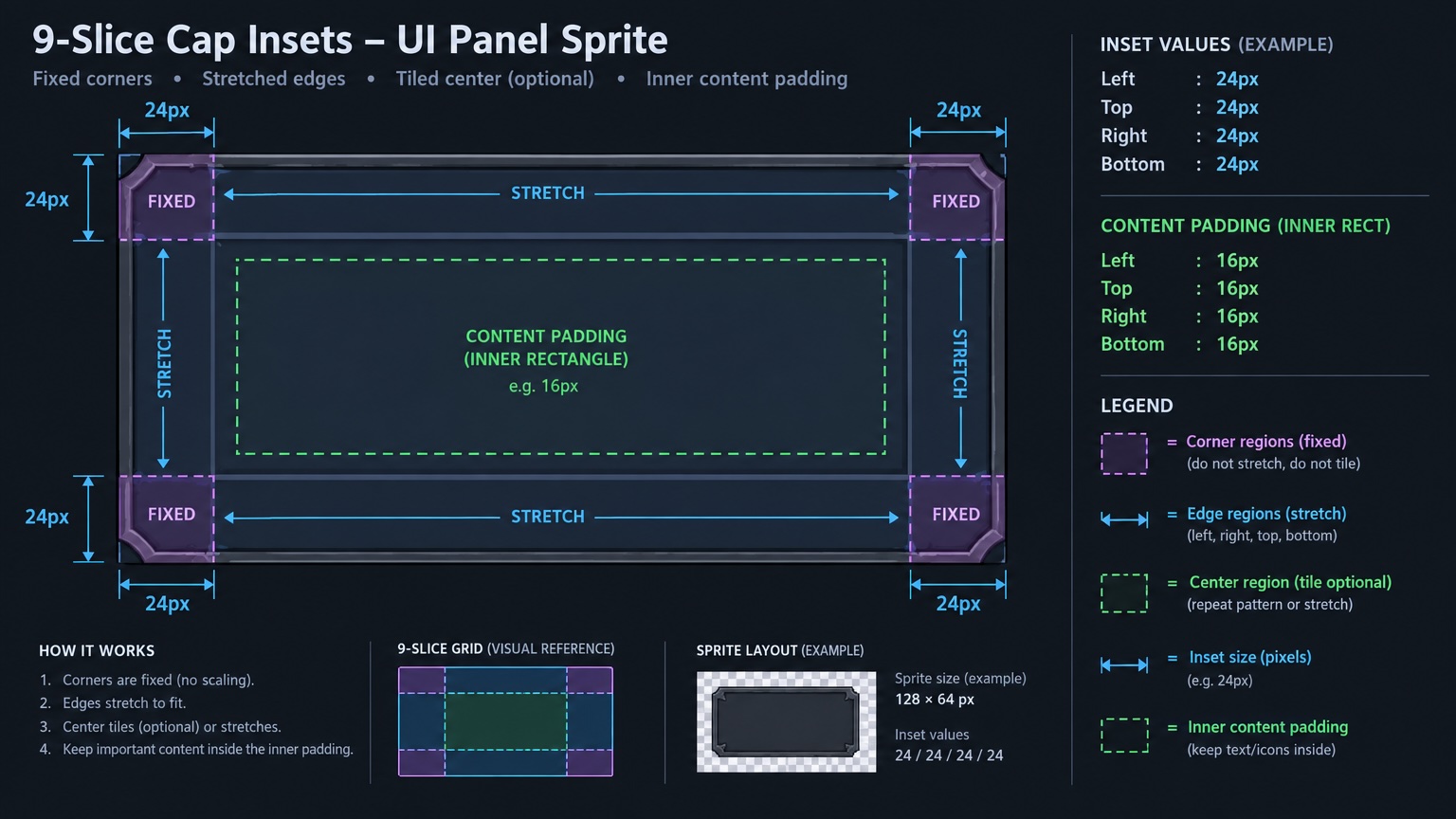

2	Border / cap inset in px (four sides)	Matches @1x or team export scale in delivery notes
3	Fixed export scale (@1x/@2x or 1080 baseline)	Engineering does not guess border math
4	Corner radius outside stretch region or spec allows non-stretch corners	No “corners turn into capsules” pass
5	Stretch region tile-friendly or solid	Center repeat without obvious misalignment
6	Semantic names	e.g. Panel_Shop_9s, Input_Field_9s
7	Multi-state (normal / disabled) same border	Insets match; only color/skin changes
8	PSD slice or Figma export notes transparent padding	Do not count shadow in border unless spec says so
9	Deliver with handoff item 5 button states	Do not patch missing states with wrong 9s art
10	Event reskin changes art only, border unchanged	See reskin spec

Figma: put cap inset in component docs when using resizable frames or slice plugins. PSD: align slices with PSD to Unity in 5 minutes.

---

Three engines: components and acceptance

Item	Unity UGUI	Godot 4 Control	Cocos UI
Component	Image → Sliced / Tiled	StyleBoxTexture (patch margin)	Sprite nine-slice / Sliced
Border source	Sprite Editor Border (L/T/R/B px)	content_margin / patch	Cap insets (LTRB)
Content area	RectTransform + child padding	MarginContainer + Theme	Widget / layout padding
Typical fail	Simple misuse; wrong-scale border	Patch vs texture size mismatch	Atlas rotation breaks inset
Pass	At 150% / 200% width: sharp corners, clean center	Same; Theme preview matches Play	Same; device spot-check long list

Unity Editor acceptance (map to other engines):

1. Set Prefab Image to Sliced with borders matching design.
2. Drag panel RectTransform to min and max design widths.
3. Compare corners, edges, and center to Figma/PSD capture.
4. If Play mode OK → one device pass per pre-ship checklist.

---

Full-screen concept: canvas split and re-export

With PNG or AI full-screen art only, border cannot be inferred. Path: VberAI Studio (AI Studio, ≠ Google AI Studio) in-place split → mark scalable panels → export Prefab (deterministic, not LLM YAML).

Step	Action	Acceptance
1	Full screen on canvas; split Panel_* and fixed icons	Named hierarchy
2	Confirm panel 9-slice intent on canvas or before export	Owner for inset documented
3	Export Unity / Godot / Cocos Prefab	Sliced QA per table above
4	After reskin / locales, full-tree re-export	If border spec unchanged, insets unchanged

Layered Figma/PSD: prefer Figma → Unity or PSD to UGUI, then minor border tweaks in engine—avoid re-exporting 20 loose PNGs each event.

---

Fix routing

Symptom	Likely cause	Action	Owner
Blurry corners	Simple scale on whole image	Sliced + correct border; design adds inset mark	Engineering + Design
Center seam / repeat blocks	inset off 1–2px; scale mismatch	Match design px; reimport sprite	Engineering
Corners stretch oval	Art should not nine-slice	Fixed size or new corner art	Design
Border changes after reskin	New art size or padding	Lock canvas size in reskin spec; re-QA after reskin	Design
List row bg deforms	Row bg stretched like full panel	Row-specific 9s or fixed height	Design
Fail only at some resolution	Canvas Scaler non-integer scale	Engine checklist Anchor/Scaler	Engineering

Rule: If border ≠ design → fix marks or sprite source first, then Prefab. Inspector-only fixes without updating delivery → lost on next export.

---

vs “PNG pack only” handoff

Approach	Fits	Does not fit
Manual export + engineering fills border	Few panels, demo	Frequent reskin, many screens
Figma/PSD + VberAI Studio structured export	Multi-screen, multi-engine, events	Replacing inset marks and QA
Temporary Sliced in engine	Hotfix one screen	Long-term without design source

Recommended: design inset marks → structured Prefab export → Unity Editor Sliced at two widths → MCP for logic. Raycast and binding: engine + MCP checklist.

---

FAQ

Can rounded panels use nine-slice?
Yes, but insets must sit on straight stretch edges; corners stay in non-stretch corner tiles. If corner radius grows with panel size → fail; fix art or cap max size.

Do shadows count in the border?
Product spec decides. If shadow does not stretch, split layers or mark inset on the solid rect without outer glow.

Tiled vs Sliced?
Sliced for framed panels; Tiled (or tile-friendly center art) for repeating middle texture. Write in spec—do not leave engineering to guess.

Separate slices for Godot / Cocos?
One inset semantics; switch export target via canvas multi-engine export and verify patch/cap per table.

Does VberAI Studio auto-fill borders?
Depends on export and assets; acceptance is always engine Sliced/StyleBox. No inset in design → engineering sets borders in Editor and records in spec.

Is VberAI Studio the same as Google AI Studio?
No. See comparison.
